MOSFET Clean Boost

Postby EffectsBay » Sun Mar 07, 2010 8:26 am

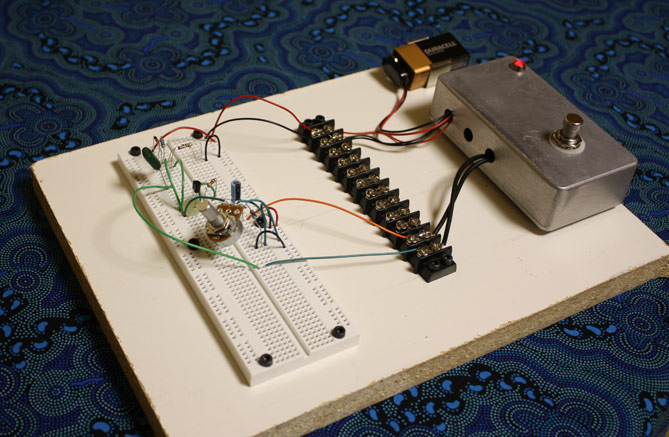

Here is my MOSFET Clean Boost. Started off on the prototype board, then to veroboard. Back to the prototype board for testing, then into the enclosure.




Thanks!
hank
User avatar
EffectsBay

Posts: 1
Joined: Sun Mar 07, 2010 8:18 am
Location: Missoula, Montana
Top

Re: MOSFET Clean Boost

Postby glenn.b » Thu May 27, 2010 4:15 pm

What size enclosure is that? Love the simplicity of that.....
glenn.b

Posts: 1
Joined: Tue May 25, 2010 4:38 pm
Top

Re: MOSFET Clean Boost

Postby PPP » Wed Jun 02, 2010 2:13 am

It looks to be a 1290 enclosure.
PPP

Posts: 32
Joined: Thu Dec 17, 2009 4:42 pm
Top

Re: MOSFET Clean Boost

Postby jackbart1960 » Mon Aug 02, 2010 3:22 am

Very cool proto board set up. Never thought to tack the bread board down and mate it up with lug strip.
jackbart1960

Posts: 3
Joined: Sun Jun 20, 2010 3:03 am
Top

Re: MOSFET Clean Boost

Postby jaki54321 » Tue Aug 10, 2010 5:51 am

Schematic please?! :mrgreen:
